Megapixy, part 1: eDP is a thing

to write about Megapixy is to write about the last 2 years. this project has tested my patience and perfectionism and pursuit of beauty as few have.

Megapixy was an adventure in sourcing parts. it was my first self-directed surface-mount PCB design, my first try at soldering QFN & DFN packages, my first attempt to route high-speed differential signals, my first non-Analog system design.

Megapixy was my first lasercut design. it birthed my Eagle-mechanical workflow and represents my highest level of electro-mechanical integration to date.

Megapixy was very, very confusing.



the problem.

let's say you were to build a small music studio. wouldn't it be great to have a small laptop-sized screen above the MIDI keyboard, so you could see what you were doing?

it turns out that hardly anyone makes nice small screens. Lenovo makes an awful battery-powered thing called the LT1421, with terrible colors, terrible brightness & contrast, USB-input only and pixels the size of your head. there's also this other thing with equally bad contrast and colors and general DGAF-ness. this was 2013 - the Retina iPad was just a few months old, and 1080p screens were finally  beginning to trickle into Windows laptops. i would settle for nothing less.

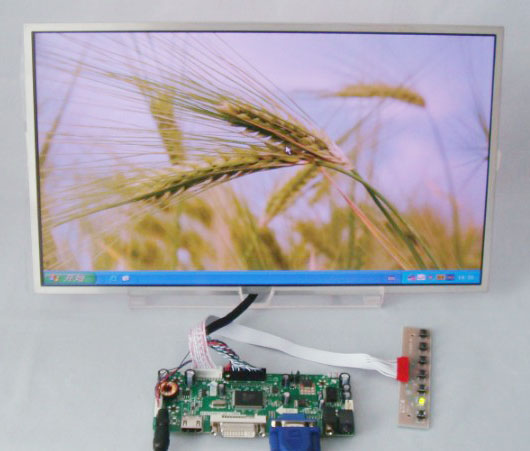

the solution, of course, was to build something. i zoomed around the internet looking for laptops with good screens, bumped into the (otherwise uninteresting) Dell L502x, and identified its LCD panel as an AU Optronics B156HW1. a quick trip to eBay nabbed that and an HDMI-compatible control board to drive the panel, and i was in business.

 this is really the best picture i could find.

this is really the best picture i could find.

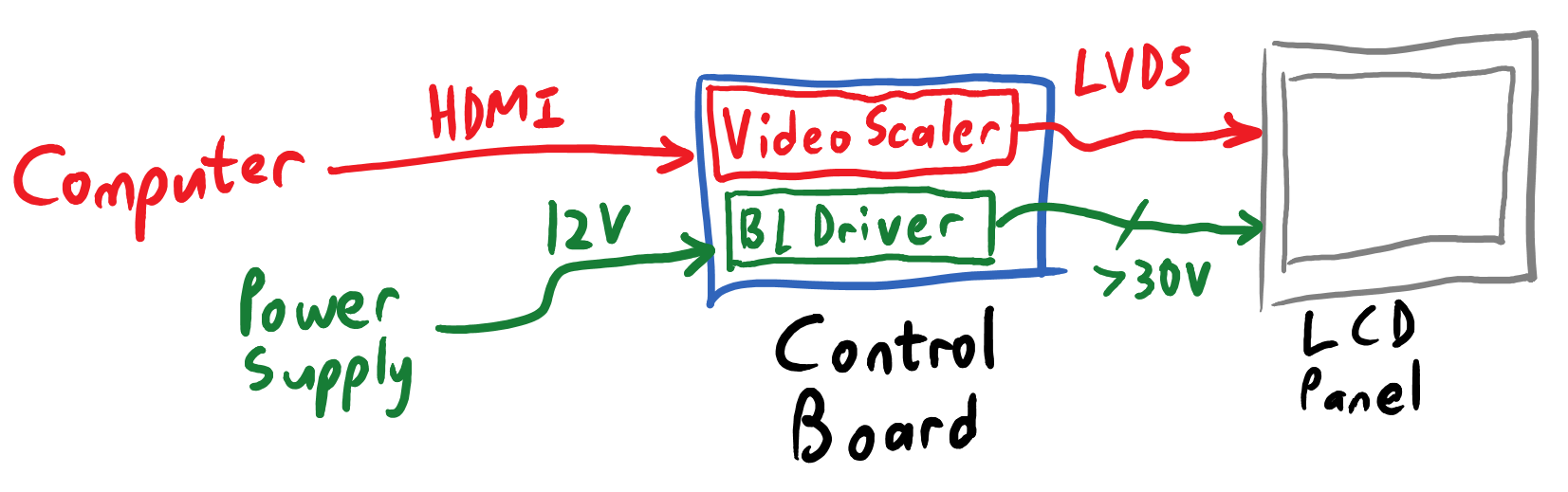

you need that control board because the LCD panel communicates through LVDS, and your computer does not. the control board also contains the backlight driver to run the backlight LEDs inside the panel.

 Shen's handwriting, circa 2015.

Shen's handwriting, circa 2015.

it works as well as you'd expect from a generic off-the-shelf solution. it turns on and it's definitely a screen, but you won't feel any joy in it.

a screen is only useful in front of your face, so i slapped together a chassis. having hardly any tools in 2013, i asked a frame shop to frame the LCD panel like a painting, and built the rest of the chassis to screw into the rear of the frame.

 Shen's handwriting, circa 2013.

Shen's handwriting, circa 2013.

after much drilling, sawing, gluing & screwing:

 the front looks alright.

the front looks alright.

 but those colors are definitely off.

but those colors are definitely off.

 and those pixels are still pretty pixelly.

and those pixels are still pretty pixelly.

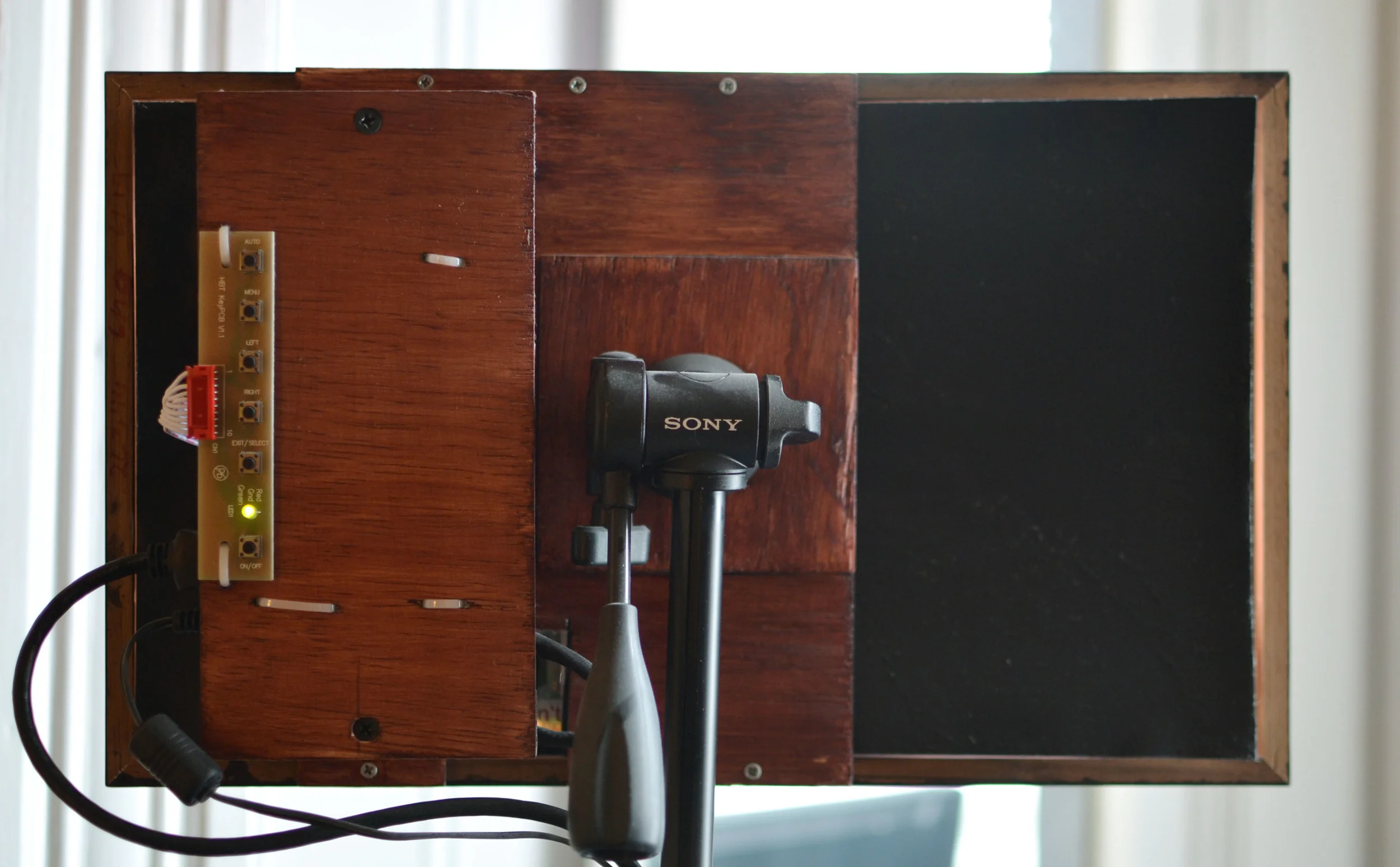

 the back is.. not so good.

the back is.. not so good.

i used a 1/4-20 T-nut to mount the chassis to a tripod, as i often do. i'm not thrilled, but it works. what should be better?

  • really bad viewing angles. you can calibrate the colors, but they'll only look right from one direction.
  • 'Full High Definition' be damned, 1080p is still not enough pixels.
  • it is too heavy, with asymmetrical weight distribution.
  • why are the buttons on the back?

no seriously, why do all monitor controls suck?

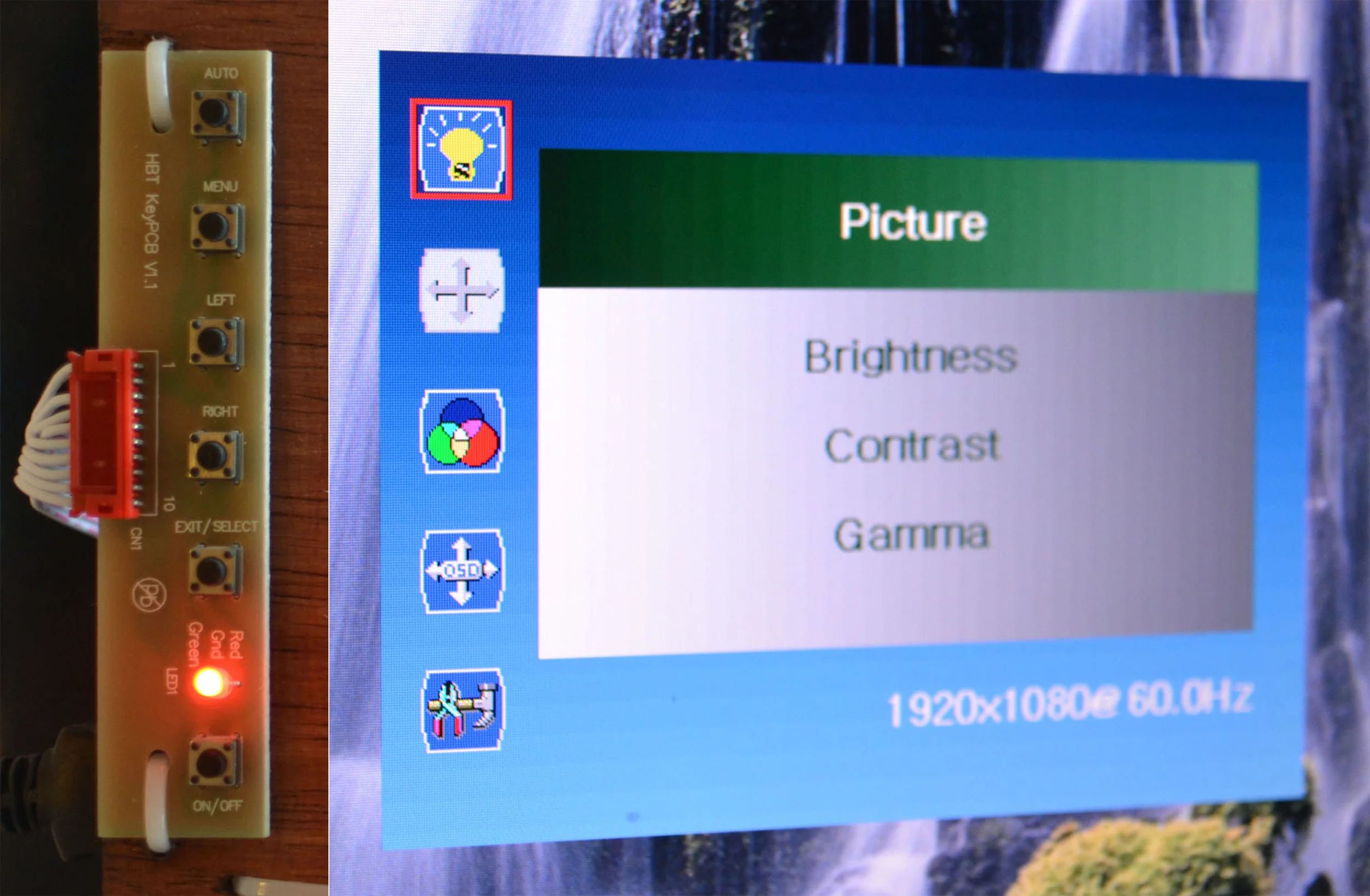

 identical row of control buttons (left), on-screen settings (right).

identical row of control buttons (left), on-screen settings (right).

even the most crazy-expensive professional LCD monitors use a row of identical, nasty-clicky buttons. you have to look at them since they all feel the same, but you also have to look at the screen to see your on-screen settings. so your eyes will dash back and forth, between buttons and screen, until the controls time-out and the on-screen settings vanish. and then you'll have to start over.

*cue much wailing & gnashing of teeth*

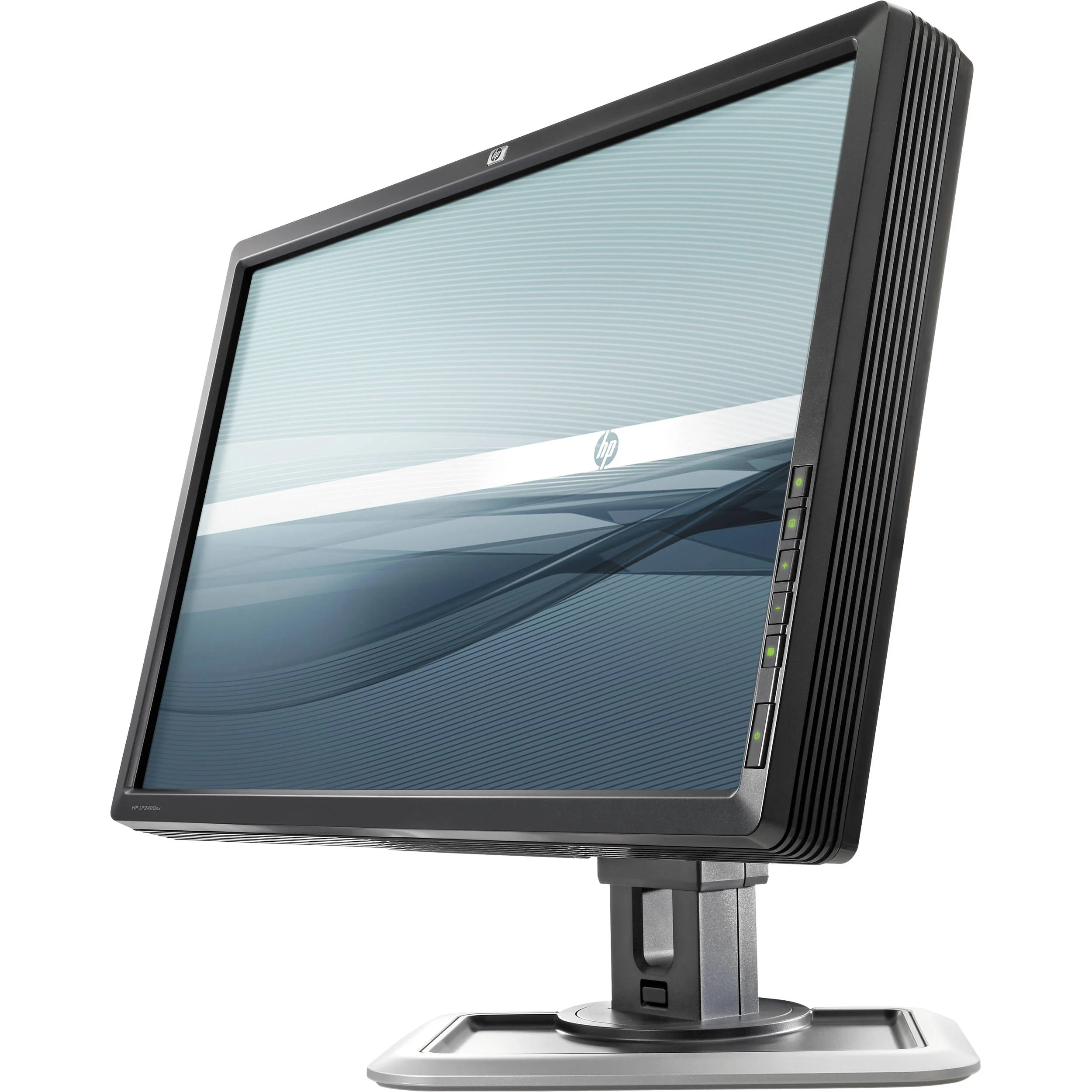

 HP Professional Dreamcolor Monitor, now featuring more identical buttons.

HP Professional Dreamcolor Monitor, now featuring more identical buttons.

isn't this crazy? doesn't this drive you nuts? am i just weird?

i mean, your computer's operating system already has color, brightness and gamma controls. the advice of professionals is to keep your screen unadjusted (except for brightness) and do all adjustments in software. why do our screens need anything beyond a power button and brightness control?

and how can i make a better screen without relying on someone else's crappy control board?

then someone clued me in on a very interesting Hack-A-Day article, and i started thinking very hard. one thing was clear - embedded Displayport (eDP) was the way forward, and everything else was a sideshow.

i promptly forgot about the music studio, and started tackling this for reals.

next update: hacking the Retina iPad.
