DSP 01, part 3: UI and lasercut chassis







 analog signal processor, front panel, circa 2013

analog signal processor, front panel, circa 2013

the single biggest difference between 'hacky' and 'solid' audio gear is the box it comes in.

this isn't just vanity. well-constructed equipment lasts, which justifies its cost in cash and time. you won't worry when you move it. you won't worry when you touch it. the interconnects won't wiggle out of place, the volume control won't crackle or free-spin. the bloody thing won't catch fire.

if it's performing for you, or you're performing with it, it won't give up, turncoat and die.

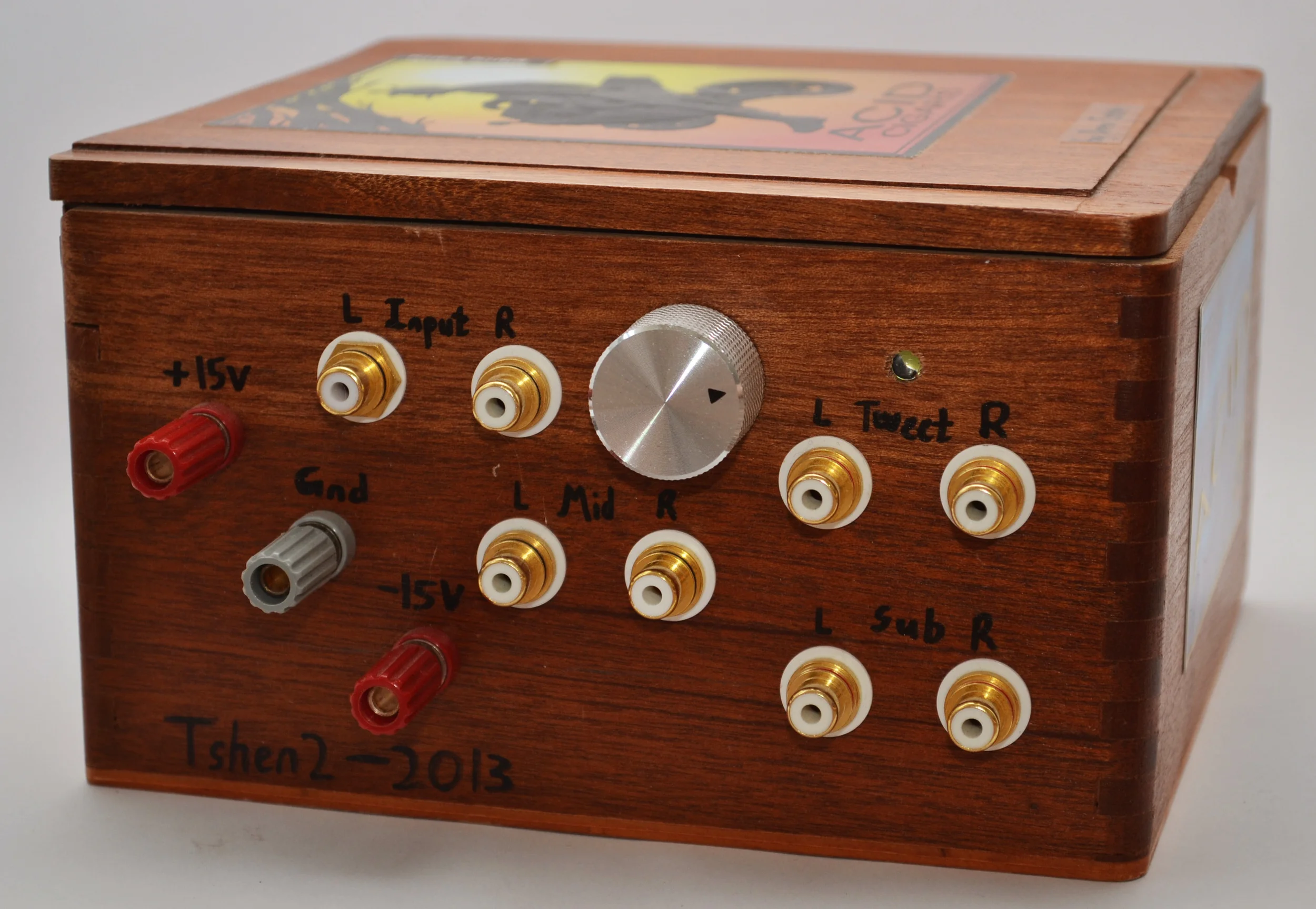

it is a real pity that most hackers half-ass their boxes. above is my own attempt, in 2013, to turn a cigar box into an electronics chassis. there's no symphony to the position of anything. it's hacked together in all senses of the word.

the inside is worse.

  analog signal processor, inside view, circa 2013

analog signal processor, inside view, circa 2013

are the circuit boards anchored by the tension of the wires? yes.

are the jacks Loctite-ed with hot glue? yes.

is the volume pot protoboarded and bolted to scrap plastic? yes.

is every input and output tight-roped on unshielded wires? yes.

this isn't even all. there were two stereo amplifiers and three separate power supplies, all with their own hacked-up boxes, and cables strung in between.

it even took ages to hand-cobble this disaster. i'd completely overlooked mechanicals during the design phase. here was the result. never again.

DSP 01 would be a singular, hyper-integrated thing. i would nestle the user interface, DSP core and quad-channel amplifier board into a single box. one 24V power supply would power the amplifiers as well as the DSP, through a 5V buck regulator.

 UI board, version 1

UI board, version 1

the UI board plugs directly into the main DSP board, giving it RCA inputs, RCA/3.5mm outputs, two adjustment pots and indicator lights. i added a tiny knob to dim the power light. i lasercut holes in the front panel with my mechanical Eagle CAD technique, to exactly fit the pots and RCA jacks. the amplifier's heat sink would orient vertically to maximize passive cooling.

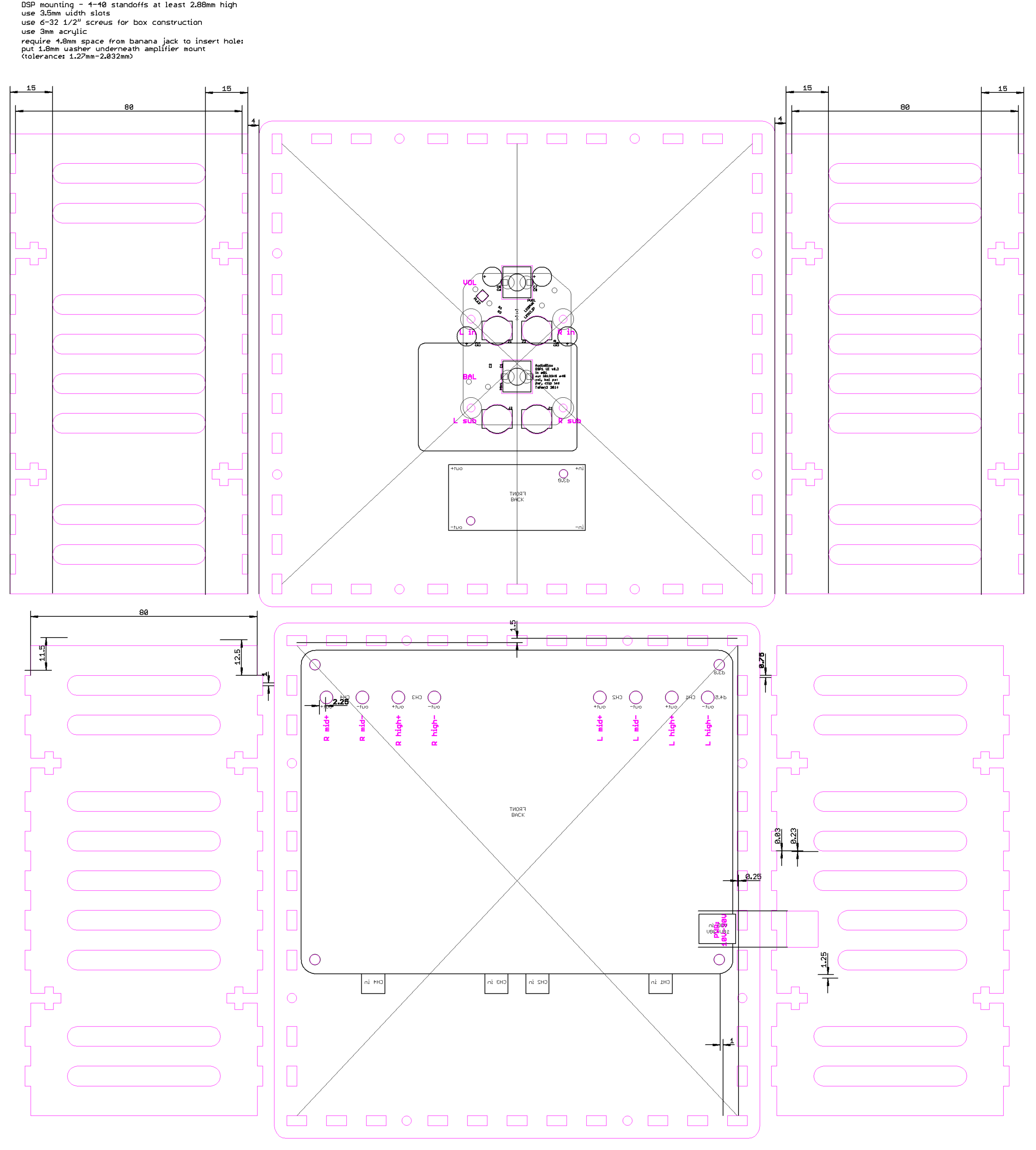

 the entire lasercut assembly

the entire lasercut assembly

then i went to lasers.

 initial fit.

initial fit.

 those screws are too high. i'll have to cut holes around them.

those screws are too high. i'll have to cut holes around them.

 all precision projects must ebb to barbarism.

all precision projects must ebb to barbarism.

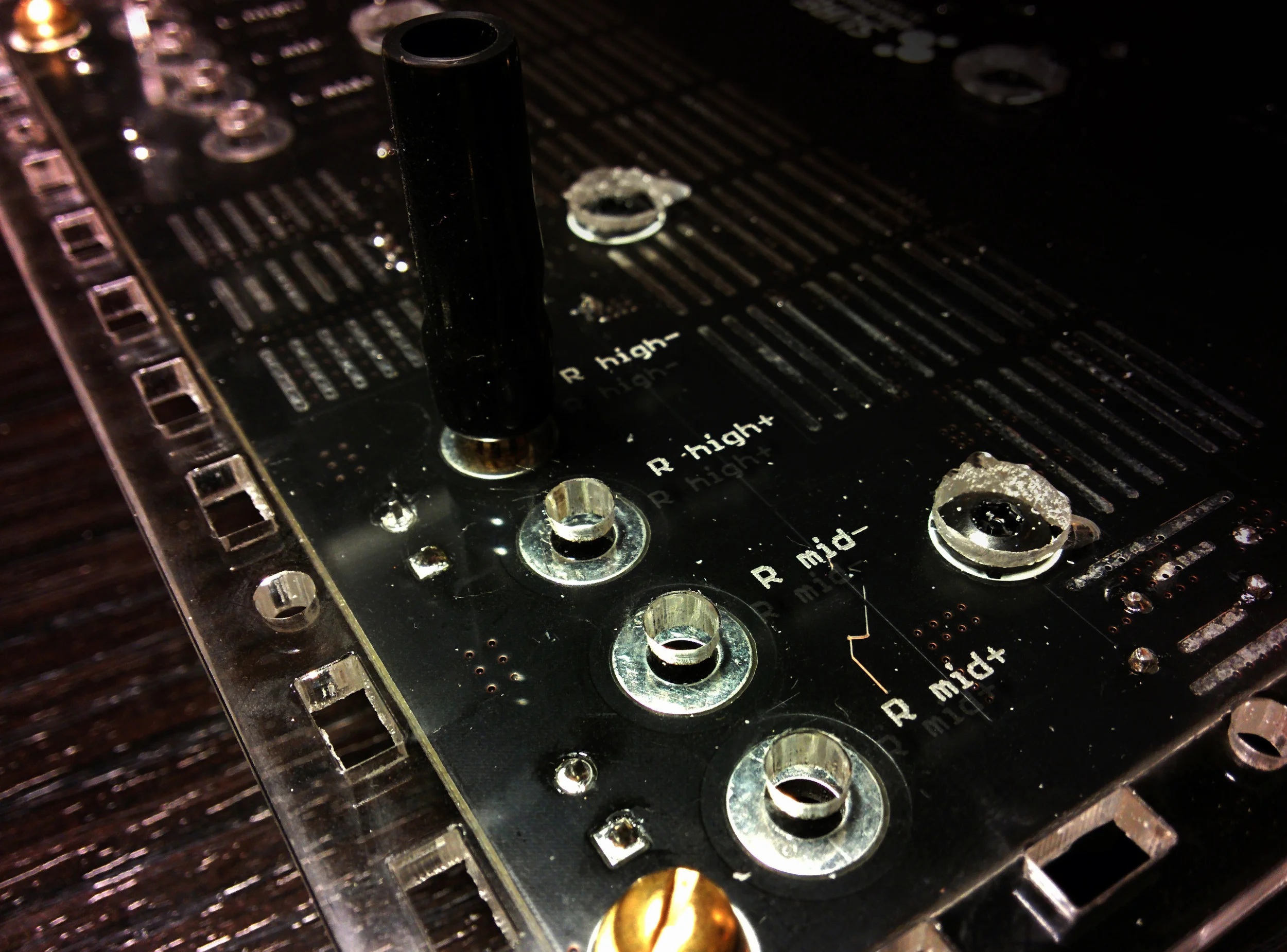

 banana jacks fit with a 4.8mm shoulder.

banana jacks fit with a 4.8mm shoulder.

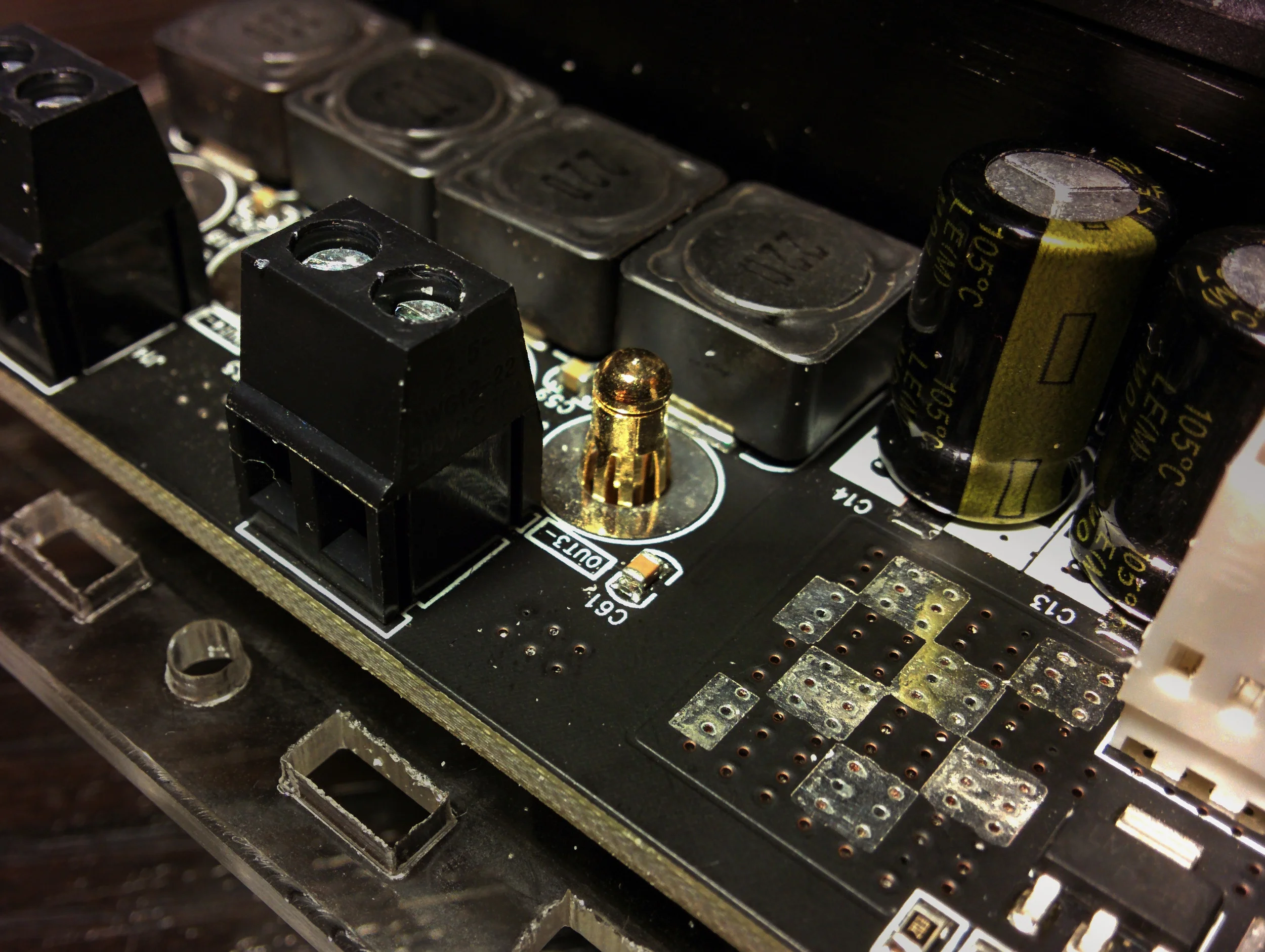

 the contact bulge meets the via.

the contact bulge meets the via.

 amplifier, DSP and buck converter.

amplifier, DSP and buck converter.

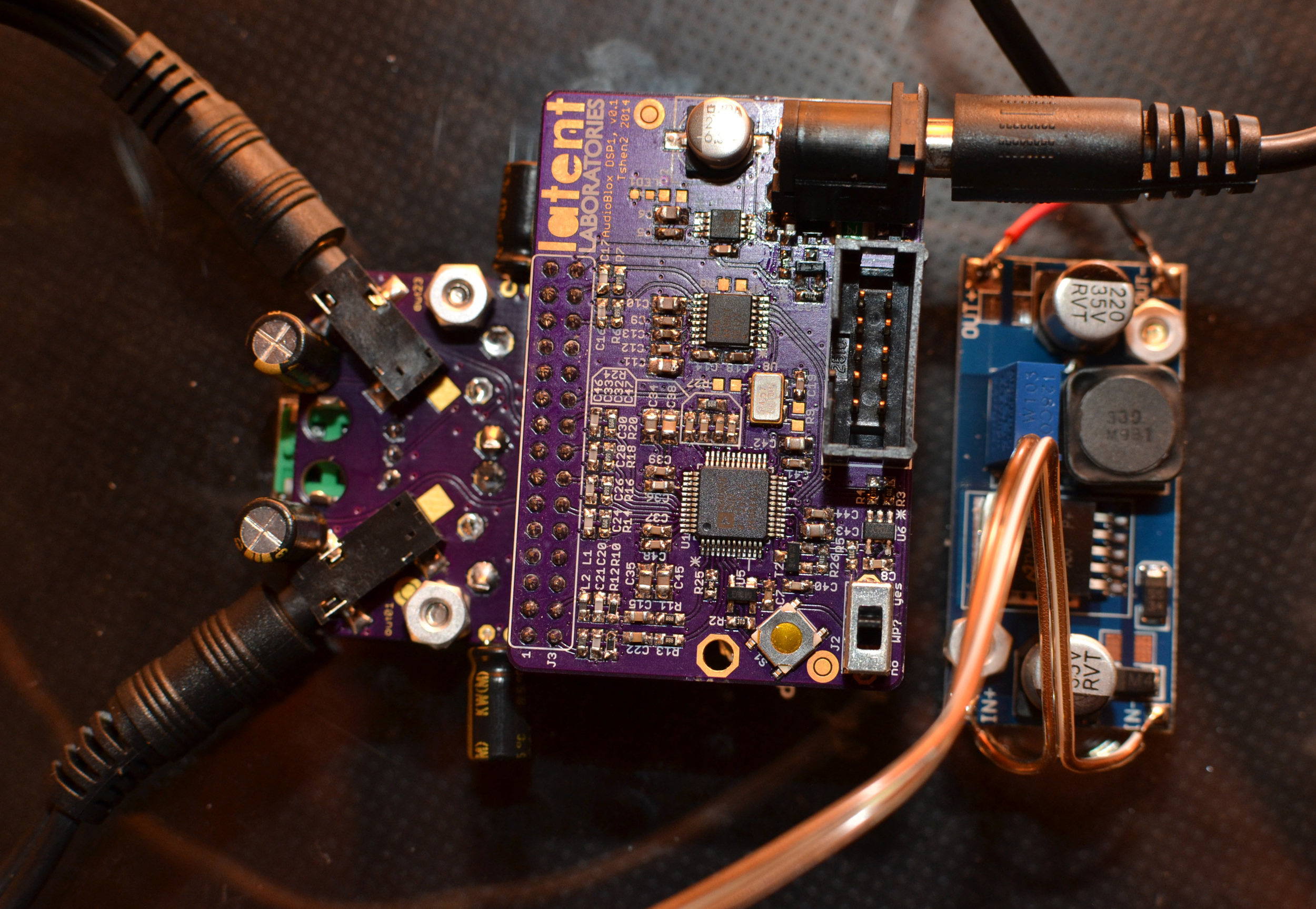

 DSP in detail.

DSP in detail.

 ready for testing.

ready for testing.

next update, i will describe my acoustic measurements and DSP programming.
